Vortex Rear Sprocket, Aluminum CAT5, Style 526A (520)

Sprockets set your gearing. One tooth fewer at the front, or a couple more at the rear, makes the bike pull harder out of corners and lifts the front sooner, at the cost of top speed and higher revs on the highway. Going the other way calms it down. Worn sprockets have hooked or pointed teeth and will wear out a new chain quickly.

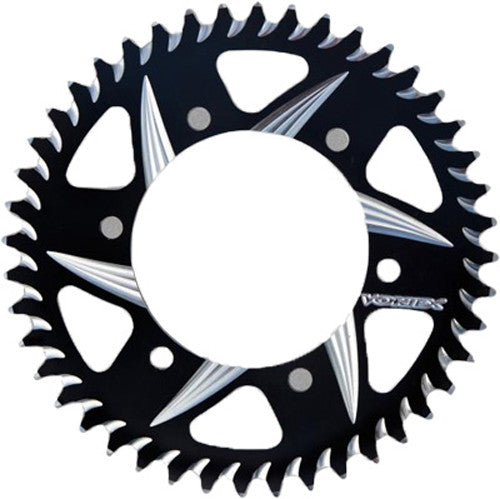

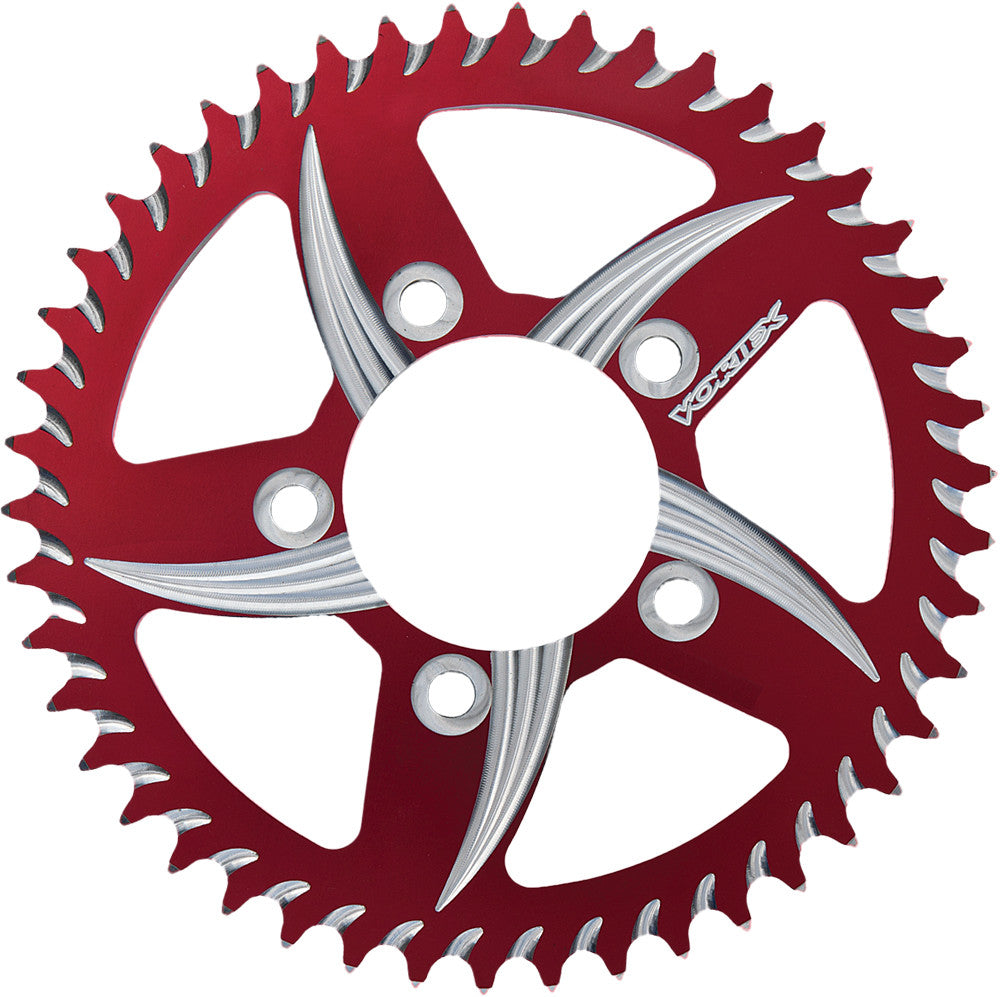

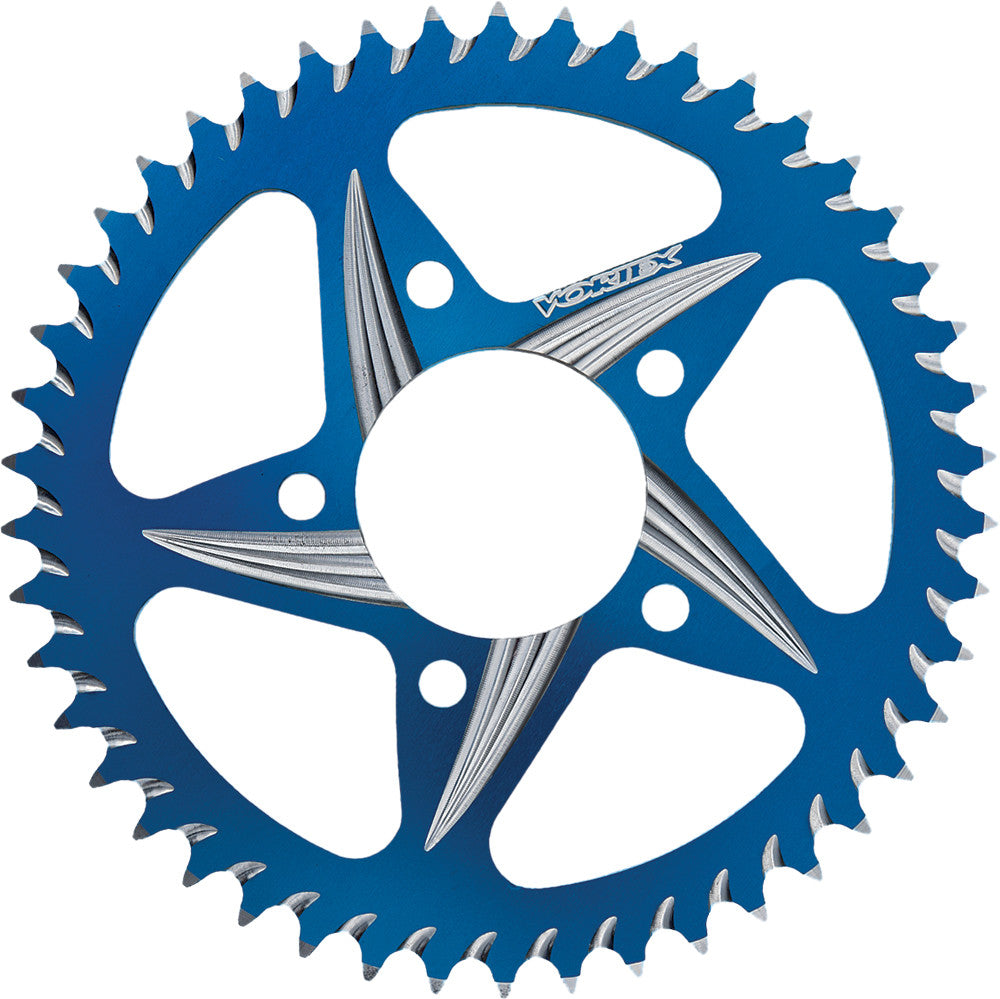

Stock photo: it shows the CAT5 finish and colour. The spoke and bolt pattern of Style 526A may look different.

Fits as a 520 conversion: 10 bikes, listed below

• CAT5 are CNC manufactured to the tightest tolerances with a unique tooth design
• Color anodizing which excludes the sweeps, mud grooves and teeth for a flash of color
• Model-specific: check the fitment list for your bike

Fits

Every tooth count of this rear sprocket fits the bikes above. Choose the stock count to keep your gearing, or a different one to change it.

A bike marked (520 conversion) takes this sprocket only once its final drive is converted to 520 chain, with a matching front sprocket and chain.

Changing tooth counts changes your speedometer reading on most bikes, and may need a different chain length. Replace sprockets and chain together.
