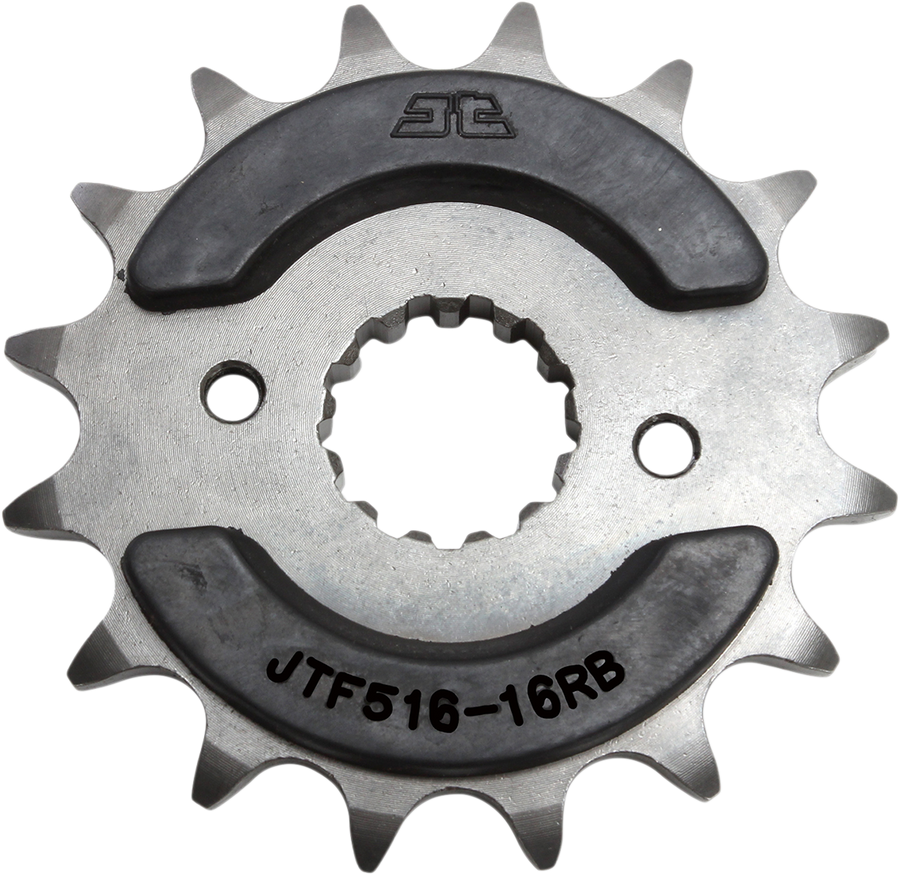

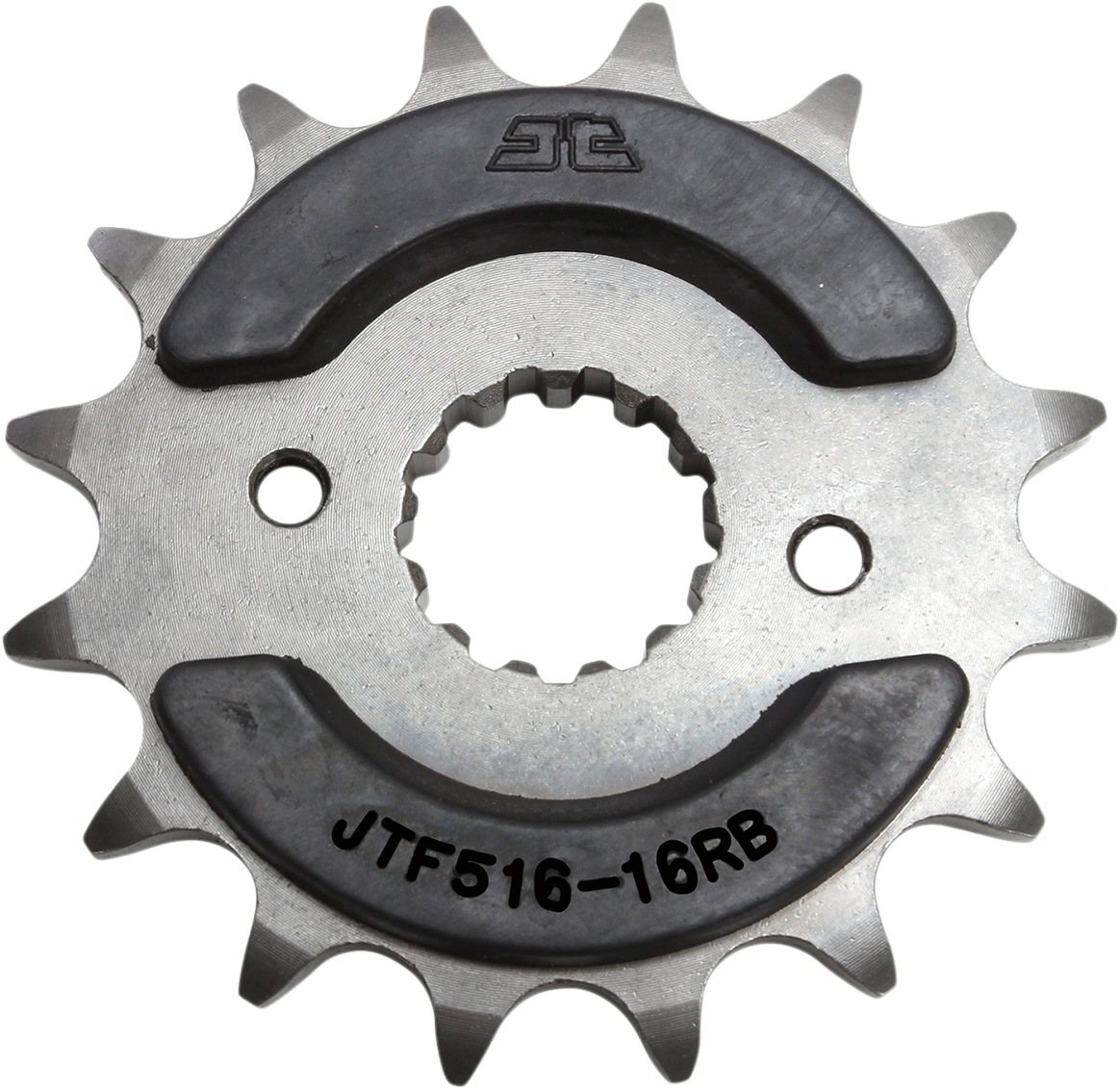

JT Front Sprocket, Steel Rubber-cushioned, Style JTF516 (520) — 16T
JT Front Sprocket, Steel Rubber-cushioned, Style JTF516 (520) — 16T
JT Front Sprocket, Steel Rubber-cushioned, Style JTF516 (520) — 16T

JT Front Sprocket, Steel Rubber-cushioned, Style JTF516 (520)

$15.03

Brand: JT
Availability: Ready to Ship
Online orders usually ship the next business day, and typically arrive 2–5 business days after that. Call (317) 207-0525 for in-store availability, faster shipping, or urgent orders — or email info@indysbk.com.

Sprockets set your gearing. One tooth fewer at the front, or a couple more at the rear, makes the bike pull harder out of corners and lifts the front sooner, at the cost of top speed and higher revs on the highway. Going the other way calms it down. Worn...

Teeth

$15.03

Sprockets set your gearing. One tooth fewer at the front, or a couple more at the rear, makes the bike pull harder out of corners and lifts the front sooner, at the cost of top speed and higher revs on the highway. Going the other way calms it down. Worn sprockets have hooked or pointed teeth and will wear out a new chain quickly.

Fits 6 models from Kawasaki and Suzuki: see the list below

  • Computer-designed to achieve ultimate strength at minimum weight
  • Sprockets are heat-treated and bead-blasted to reduce material surface tension
  • Front sprockets are made with C45 steel and SCM415 chromoly steel alloy
  • Rubber cushion used by the major Japanese motorcycle manufacturers since early 1990’s to dampen the chain impact on the teeth of the front sprocket
  • Model-specific: check the fitment list for your bike

Fits

Bike Years Stock gearing (front / rear)
Kawasaki EL250E 1990–1993 14 / 44
Kawasaki EX250 H1/H2 1990–1991 —
Kawasaki EX250 1986–1987 14 / 42
Kawasaki KLR250 1984–2005 15 / 44
Kawasaki Ninja 250R 1988–2006 14 / 45
Suzuki GS500/E/F 1994–2007 16 / 39

Every tooth count of this front sprocket fits the bikes above. Choose the stock count to keep your gearing, or a different one to change it.

Changing tooth counts changes your speedometer reading on most bikes, and may need a different chain length. Replace sprockets and chain together.

Compatible Bikes
  • Kawasaki EL250E 1990-1993
  • Kawasaki EX250 H1/H2 1990-1991
  • Kawasaki EX250 1986-1987
  • Kawasaki KLR250 1984-2005
  • Kawasaki Ninja 250R 1988-2006
  • Suzuki GS500/E/F 1994-2007
Position Front (countershaft)
Pitch 520
Material Steel Rubber-cushioned
Style JTF516
Tooth counts 16

Ships to the lower 48 and DC. Returns accepted on most items.
