A chain and sprocket kit replaces the whole final drive at once: front sprocket, rear sprocket and chain. That is how these parts are meant to be replaced, because they wear together, and a kit takes the guesswork out of matching pitch, tooth counts and chain length.
Converts the Yamaha YZF-R1 (2009–2014) to 520 chain and quicker gearing, 16 / 49 (stock 17 / 47)
| Bike | Years | Kit gearing (front / rear) |
|---|---|---|
| Yamaha YZF-R1 | 2009–2014 | 16 / 49 |
Stock is 17 / 47. This kit is one tooth smaller at the front and two larger at the rear: about 11% shorter overall gearing, so the bike pulls harder in every gear and tops out lower. A speedometer that reads from the gearbox or front sprocket will read fast. One down, two up is a common starting point, not the right answer for every bike or rider: ask us if you want a different setup.
Unless the listing says otherwise, a kit is built for stock gearing. Check the fitment list and tooth counts before ordering.
We highly recommend a rivet-type master link on any street bike. Fitting one takes a chain riveting tool, which you can buy from us in the shop or online, or we can install your chain and sprockets for you.
| Pitch | 520 |
|---|---|

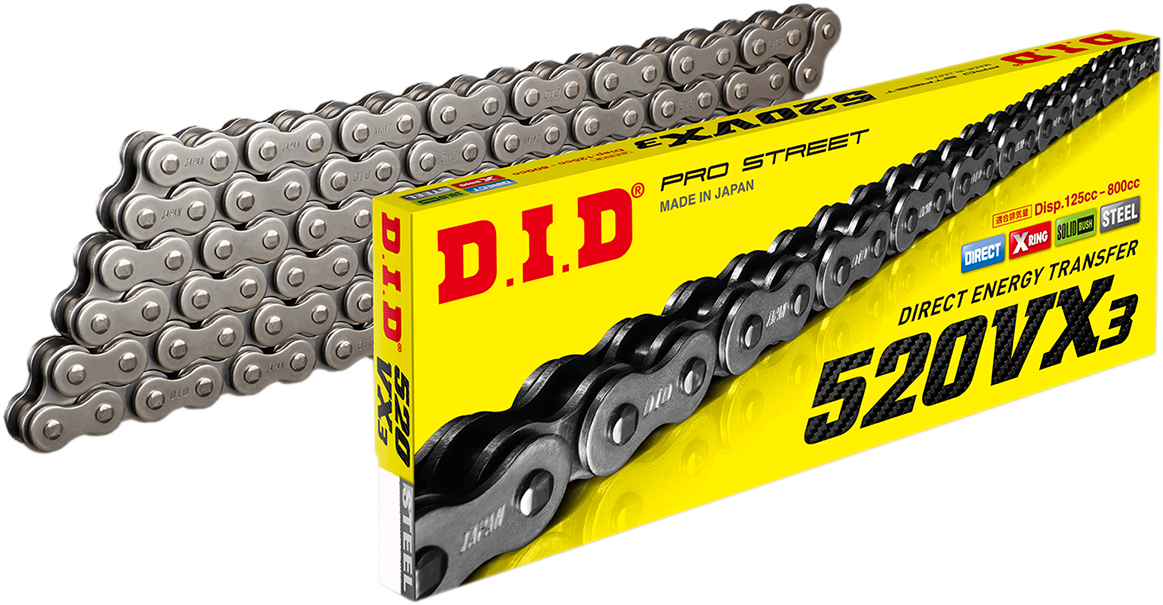

| Chain type | X-ring (D.I.D 520VX3) |
| Chain length | 120 links, cut to fit (122 links needed) |
| Master link | Clip or Rivet |
| Gearing | 16 / 49 (stock 17 / 47, about 11% shorter) |

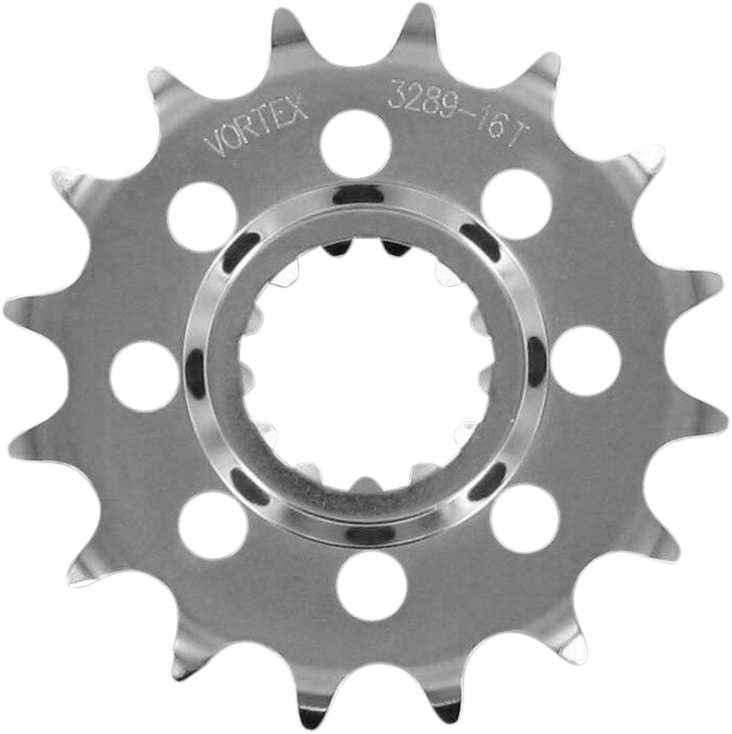

| Front sprocket | Vortex Style 3289, 16T, steel |

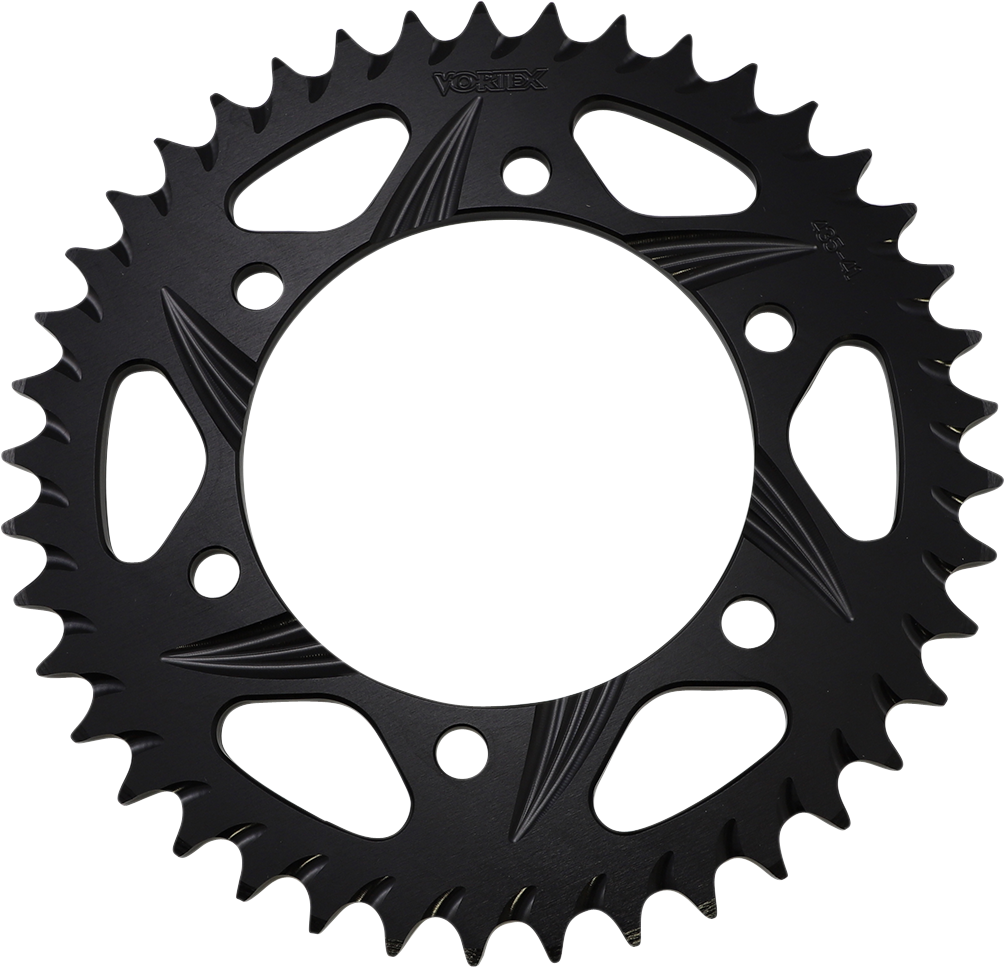

| Rear sprocket | Vortex Style 435, 49T |
Ships to the lower 48 and DC. Returns accepted on most items.
